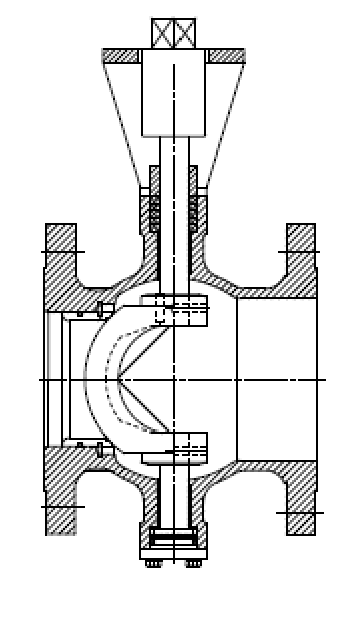

Pneumatic V-shaped clamp ball valve segmented pneumatic V-shaped clamp ball valve is mainly designed for flow control and can also be used for closing. The notch ports on segmented balls help to cut media and particles with fibers under strong shear stress. Therefore, this pneumatic V-type clamp ball valve is a good universal control valve application for most pulp and paper processes or similar flows containing fibers and particles.
1. Body WCBCF8CF8M2. V-mouth segment CF8+HCrCF8+HCrCF8M+HCr3. Pin 3043043164 Seat 304+STL304+STL316+STL5 Spring 316L316L316L6. O-ring maintenance 7. Bearing 304+PTFE 304+PTFE 316+PTFE 8 Lower stem 304, 304, 3169. O-ring, Weitong, Weitong, Weitong, Weitong, 10. Packing gland WCBCF8CF8M, November 12th. Gasket PTFE PTFE 13. Gasket Q23530431614/15 bolt 2530430416. Bearing 304+PTFE 304+PTFE 316+PTFE 17. Key 304, 304, 316, dated 19th, 2018. Packaging PTFE or graphite PTFE or graphite PTFE or graphite 21 Packing gland WCBCF8CF8M22. Nut Q23530430423 Upper stem 304, 304, 316 standard parts list valve body • Integrated valve body can prevent leakage caused by separate flanges or locking rings. V-notch segmented ball: The specially designed V-shaped notch ball provides strong cutting stress and tight sealing. The well ground notch ball surface ensures small operating torque and tight sealing, especially suitable for metal sealed segmented valves. The special valve seat design eliminates the cavity between the valve seat and the valve body. This, therefore, prevents the medium from getting stuck between the valve seat and valve body, ensuring reliable sealing. Sealing surface • Nitriding/tungsten carbide/satellite alloy/nickel based alloy electroplating can be used for grinding media. The dry valve stem is finely grounded and perfectly matched with the actuator, which can prevent swinging motion and potential faults of the V-port segmented valve Tightly fitting splines or pin keys can be used for valve stem ball connections to provide reliable transmission without motion loss or dead zones.
Application of pulp and paper/wastewater treatment/food and beverage/chemical plants/power plants/steel industry/etc
