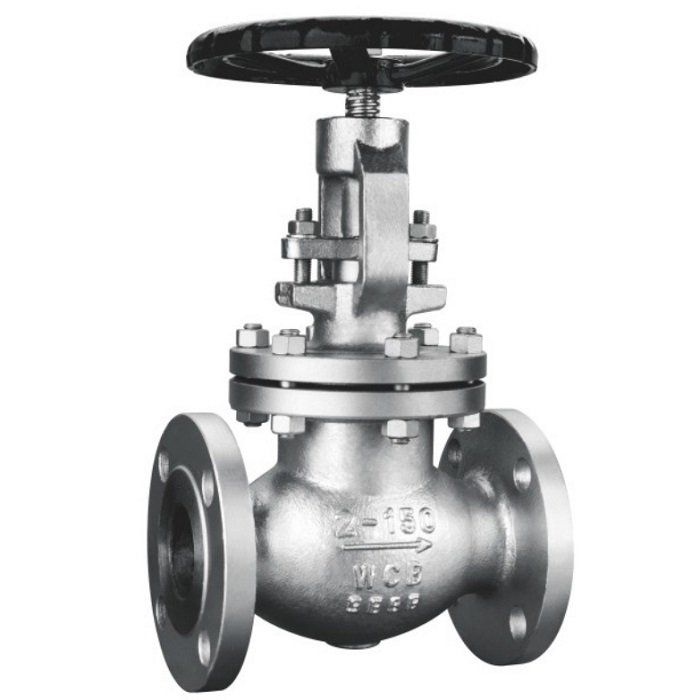

ANSI Class 150 American standard flange globe valve, also known as switch valve, is usually made of stainless steel or carbon steel and is mostly operated by manual handwheel. The larger ones can also be operated with bevel gears, saving the force required for switching switches.
Chinese 150 level flange globe valve manufacturer
We are a manufacturer of stainless steel American standard globe valves located in China. We have a factory and high-quality globe valves
The valve body is barrel shaped or streamlined, with a beautiful appearance and a straight through flow channel shape, resulting in low fluid resistance. The closing part (valve disc) and valve seat are sealed with a conical surface, which has low closing force, erosion resistance, and reliable sealing. The valve seat can be a replaceable valve seat that can be combined with the sealing surface material of the closing element to meet various working conditions and extend its service life.
150 grade flange globe valve material: stainless steel 304, 316, carbon steel WCB size: 2 "-20" Design standard: BS1873 JIS B2071-2081 Structural length: ANSI B16.10, JISB2002 Piping flange: ANSI B16.5, JIS B2212-2214 Welding end size: ANSI B16.25 Inspection and testing: API598, JIS B2003 Transmission mode: manual, electric, bevel gear, pneumatic
Class 150 globe valve/Class 150 globe valve/Class 150 globe valve. The opening and closing components of the globe valve are plug shaped valve discs, with a flat or conical sealing top. The valve disc moves linearly along the centerline of the valve seat. The movement forms of valve stem include lifting rod type and rotating rod type, which can be used to control the flow media of various fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal, and radioactivity. Therefore, this type of cut-off valve is very suitable for cut-off or regulating and throttling. Due to the short opening and closing stroke of the valve stem and its highly reliable shut-off function, as well as the fact that the variation of the valve seat is proportional to the stroke of the valve disc, this type of valve is very suitable for flow regulation.
