JIS 20K flange globe valve/globe valve specification JIS 20K flange globe valve can also be referred to as a shut-off valve. JIS 20K is the class name for Japanese standard valves. The globe valve is mainly driven by the rotation of the handwheel, and the valve stem drives the valve seat to rise and open, and fall and close.

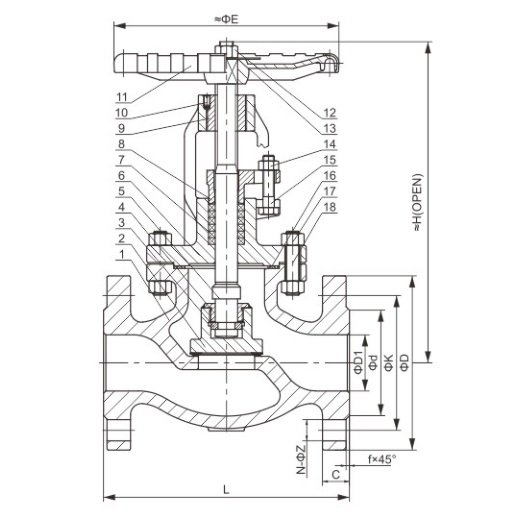

JIS 20K flange globe valve structure diagram
Product structure and details China JIS 20K globe valve manufacturer The following diagram shows the globe valve produced by our factory. The product is made by precision casting. The design standards and structural dimensions comply with JIS standards.
Body material: CHPH2, SCS13, SCS14 Nuclear power source: 50A-500A Design standard: JIS B2071 Face to face: JIS B2002 Flange standard: JIS B2220 Inspection and testing: JIS B2003
SCPH2 SCS13/SCS14 JIS 20K globe valves We are a manufacturer of JIS standard globe valves located in China. We can provide customers with products made of various materials, including stainless steel, cast steel, forged steel, etc. We can also improve product performance through various treatments, such as low-temperature treatment, multi-layer epoxy resin coating treatment, oil-free degreasing treatment, etc
