JIS10K OS&Y flanged stem gate valve flange JIS 10K gate valve belongs to rising stem gate valve, OS&Y stem gate valve, and the main materials are: SCS13 SCS14 SCPH2， The valve stem rises and falls with the switch. Operate the valve stem to raise (open) and lower (close) by turning the handwheel.
We are a manufacturer of JIS 10K flange gate valves based in China. We are a manufacturer of JIS standard valves and can process and manufacture gate valves of various materials and specifications
Stainless steel JIS Japanese standard gate valve design standard: JIS B2071 Structural length: JIS 2002 Face to face: JIS 2220 Inspection and testing: JIS B2003 Nuclear power source: 15A-500A Material: SCS13 SCS14 SCPH2 (stainless steel and carbon steel)
The Japanese standard 10K gate valve is made of stainless steel/carbon steel, with a reasonable product structure, reliable sealing, excellent performance, and beautiful appearance; The sealing surface of the gate valve is welded with cobalt based hard alloy, which is wear-resistant, corrosion-resistant, has good friction resistance, and has a long service life; The valve stem has undergone quenching and surface nitriding treatment, exhibiting excellent anti-corrosion and anti friction properties; Double sealing of gate valve for more reliable performance; The materials, flanges, and welding end dimensions of Japanese standard gate valve components can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs. You can click to view our joint valve cover JIS gate valve

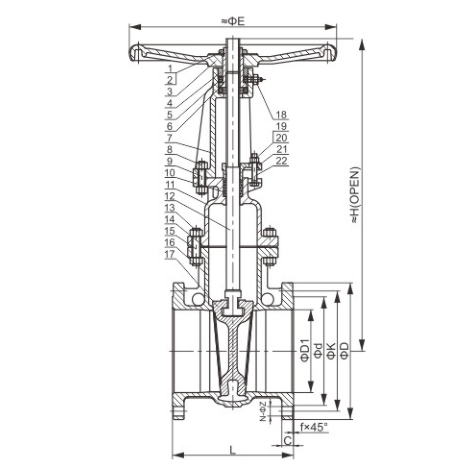

The JIS 10K gate valve structure diagram
is usually operated by a handwheel platform to open and close. We can also make bevel gears, electric actuators, and pneumatic actuators to operate and control it.
