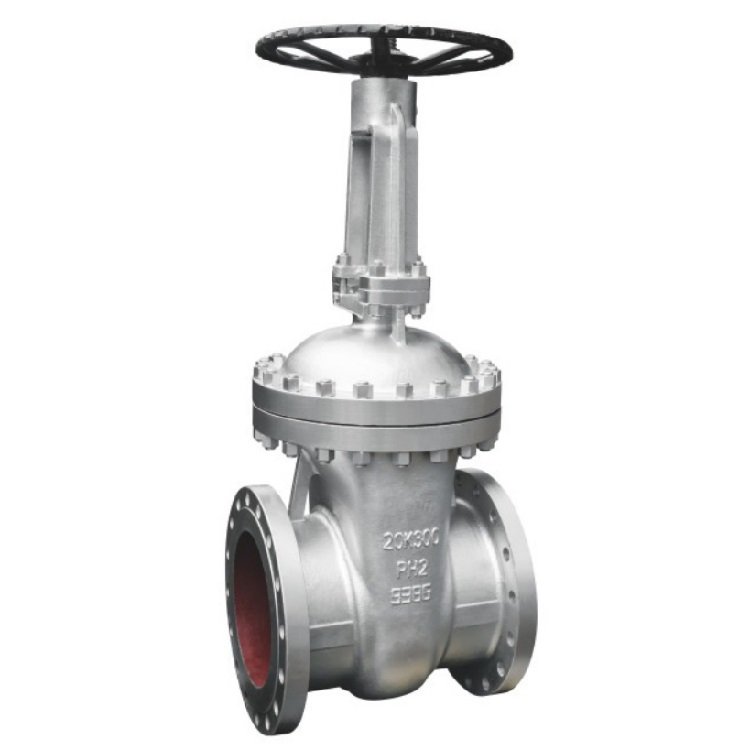

JIS 20K flanged gate valve - SCS13 SCS14 SCPH2 specification JIS 20K gate valve is a Japanese standard valve. The valve adopts OS&Y stem, with a rising stem and handwheel operation. The valve is closed by rotating clockwise and opened by rotating counterclockwise.
Chinese JIS 20K gate valve manufacturer

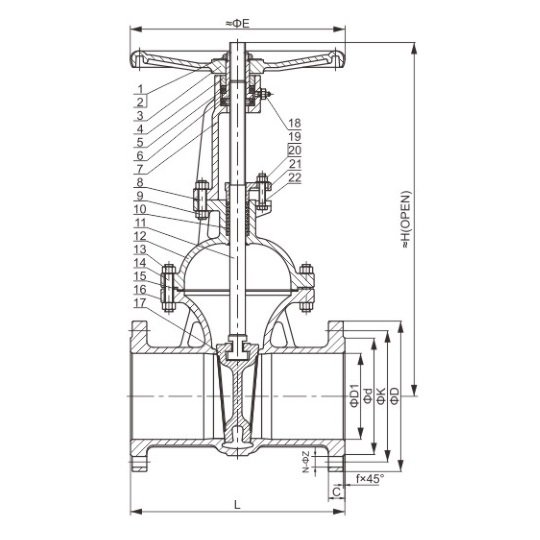

Structure diagram Applicable media: water, oil, steam, nitric acid, air, nitrogen, ammonia, nitric acid, acetic acid, etc.
Design and manufacture face-to-face flange dimensions, pressure and temperature, post inspection and testing according to JIS B2073 B2083JIS B2002JIS B2212 B2214JIS B2073 B2083JIS B2003, carbon steel pole, JIS 20K flange gate valve, and Japanese standard gate valve. In addition to carbon steel, we can also produce stainless steel and cast iron Japanese standard gate valves
The design and manufacturing of the Japanese standard 20K gate valve ① meet the requirements of JIS standards, with reliable sealing and excellent performance.
② The structural design is compact and reasonable, with a beautiful appearance.
③ Adopting a wedge-shaped elastic gate structure and medium to large diameter rolling bearings, it is easy to open and close.
④ The valve body material variety is complete, and the packing and gasket are reasonably selected according to actual working conditions or user requirements, which can be applied to various pressure, temperature, and medium working conditions.
⑤ Adopting multiple pipeline flange standards and flange sealing surface types to meet various engineering needs and user requirements.
